产品简介

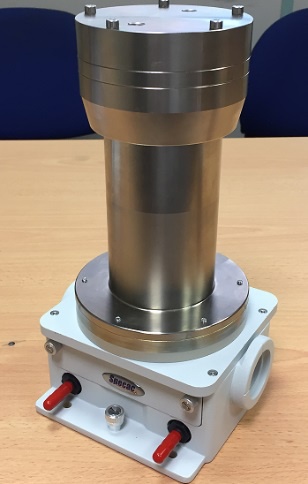

Atmos气体池系列有四个尺寸：
Atmos气体池2.5米、5米、10米、20米。Tornado™ 系列气体池使用特殊的底板配置系统，可将能量和光束耦合达到**方式。选用主体材料为金属材质腔体，内壁镀层，可针对多种气体和蒸汽提供优越的耐腐蚀性。标准配置有V型密封圈以及可选K型全氟橡胶密封确保在长时间化学腐蚀以及气体的冷凝后的强腐蚀性条件下依旧保持良好的密封。
金镜材质抛弃了原有的铝材质，选用更加不易变形的不锈钢材质，在针对化学腐蚀、稳定性、以及冷热影响方面、更加稳定、数据结果更加真实可靠。
Atmos气体池的反射次数比原有的型号减小，使得光通量更高。2.5米池的光通量可达到40%。
无镜架设计使得，内部不在会有更多被腐蚀的因素存在。
可选择ZnSe或CaF2窗片材料，透射光学腔体安装有清洁端口允许在惰性气体条件下使用。
| 光程 | 容积 | 光通量 |
| 2.5M | 0.2L | 40% |
| 5M | 0.5L | 30% |
| 10M | 2L | 20% |
| 20M | 4L | 10 |
技术参数
| 参数 | Atmos 2.5 | Atmos 5 | Atmos 10 | Atmos 20 | 单位 |
| Nominal Path Length | 2.5 | 5.0 | 10 | 20 | mm |
| 内部反射镜距离 | 104 | 139 | 250 | 455 | mm |
| 内部直径 | 50 | 68 | 96 | 96 | mm |
| 反射次数 | 24 | 36 | 40 | 44 | |
| *小光程长度 | 2.50 | 5.00 | 10.0 | 20.0 | mm |
| 容积 (between mirrors) | 0.20 | 0.50 | 1.8 | 3.3 | l |
| 附容积 | 0.026 | 0.074 | 0.166 | 0.166 | l |
| 容积 | 0.23 | 0.59 | 2.0 | 3.5 | l |
| 通量(detector/accessory entrance) | 39 | 32 | 21 | 11 | % |
| 壁厚 | 12.5 | 12.5 | 12.5 | 12.5 | mm |
| 到连接头顶部的长度 | 80 | 80 | 80 | 80 | mm |
| 外部直径 | 75 | 93 | 121 | 121 | mm |
| 外部长度 | 184 | 219 | 330 | 535 | m |
订购信息
| GS24602CV | Atmos 2.5M Pathlength Metal Bodied Gas Cell with CaF2 Windows and Viton seals. |
| GS24602CX | Atmos 2.5M Pathlength Metal Bodied Gas Cell with CaF2 Windows and Kalrez seals. |
| GS24602ZV | Atmos 2.5M Pathlength Metal Bodied Gas Cell with ZnSe Windows and Viton seals. |
| GS24602ZX | Atmos 2.5M Pathlength Metal Bodied Gas Cell with ZnSe Windows and Kalrez seals. |
| GS24605CV | Atmos 5M Pathlength Metal Bodied Gas Cell with CaF2 Windows and Viton seals. |
| GS24605CX | Atmos 5M Pathlength Metal Bodied Gas Cell with CaF2 Windows and Kalrez seals. |
| GS24605ZV | Atmos 5M Pathlength Metal Bodied Gas Cell with ZnSe Windows and Viton seals. |
| GS24605ZX | Atmos 5M Pathlength Metal Bodied Gas Cell with ZnSe Windows and Kalrez seals. |
| GS24610CV | Atmos 10M Pathlength Metal Bodied Gas Cell with CaF2 Windows and Viton seals. |
| GS24610CX | Atmos 10M Pathlength Metal Bodied Gas Cell with CaF2 Windows and Kalrez seals. |
| GS24610ZV | Atmos 10M Pathlength Metal Bodied Gas Cell with ZnSe Windows and Viton seals. |
| GS24610ZX | Atmos 10M Pathlength Metal Bodied Gas Cell with ZnSe Windows and Kalrez seals. |
| GS24620CV | Atmos 20M Pathlength Metal Bodied Gas Cell with CaF2 Windows and Viton seals. |
| GS24620CX | Atmos 20M Pathlength Metal Bodied Gas Cell with CaF2 Windows and Kalrez seals. |
| GS24620ZV | Atmos 20M Pathlength Metal Bodied Gas Cell with ZnSe Windows and Viton seals. |
| GS24620ZX | Atmos 20M Pathlength Metal Bodied Gas Cell with ZnSe Windows and Kalrez seals. |
